Micro 38999 Connectors
Threaded Coupling, Break Away, Bayonet Coupling Connectors
As a value added Souriau distributor we manufacture and supply Micro 38999 connectors in three versions: Threaded Coupling, Break Away, and
Souriau Distributor
|
|
Our company distributes all the Souriau Micro 38999 connectors with their respective tools and accessories. As one of the most reliable Souriau distributors, we
offer value added services, low prices and a commitment to excellent service second to none. Contact us Today for more info and to buy Souriau connectors.
|
|

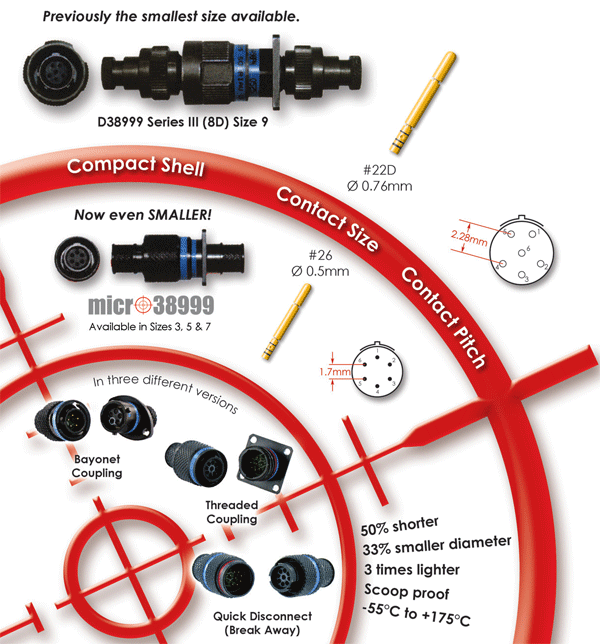

Bayonet Coupling for shell sizes 03, 05 and 07. The smallest size previously available was D38999 Series III (8D) Size 9. The Micro 38999 connector is 50% shorter, has a 33% smaller
diameter and is 3 times lighter, making it desirable for certain applications. Please see below some of the Micro 38999 products we offer and contact us for more info and to Request a Quote.
Micro 38999 Connectors - Technical Features
|
Mechanical
|
Electrical
|
Environmental
|
|
• Shell:
Aluminum alloy
Passivated stainless steel
(for size 5 & 7)
• Shell Plating:
Aluminum:
Zinc nickel
(RoHS)
Nickel (RoHS)
Olive drab cadmium
Passivated stainless steel (RoHS)
• Insulator: Thermoplastic
• Contact Body: Copper alloy
•
Contacts Plating:
Gold over nickel plated
• Shell Endurance:
Aluminum:
500 mating/unmating cycles
Passivated stainless steel:
1000 mating/unmating
cycles
•Vibration:
44 grms @ 125°C,
2 axes during 8 hours
• Shock:
300g, 3 ms
|
• Wire Size
|
Layout
|
Wire (AWG)
|
|
03-05
|
24-30
|
|
03-35
|
22-28
|
|
05-06
|
24-30
|
|
05-35
|
22-28
|
|
07-09
|
24-30
|
|
07-35
|
22-28
|
• Test Voltage (at sea level):
Size 22D: 1000 Vrms
Size 26: 400 Vrms
• Contact Resistance:
Size 22D: <14.6 mO
Size 26: <16 mO
• Contact Rating
:
Size 22D: 5A
Size 26: 3A
• Contact Retention:
Size 22D: 45N
Size 26: 30N
• Shell to Shell Continuity
|
Shell size
|
Aluminum version
|
Stainless steel version
|
|
3
|
< 10 mΩ
|
< 60 mΩ
|
|
5
|
|
7
|
• EMI:
Aluminum: -70dB @ 1GHz Passivated
stainless steel: -55 dB @ iGhz
|
Temperature Range:
-55°C to + 175°C
Water Immersion:
IP 67 on mated connector
1 meter for 30 min minimum
> IP68 with appropriate cable termination
Salt Spray:
Zinc nickel: 500 hours
Nickel: 48 hours
Olive drab cadmium: 500 hours
Passivated stainless steel: 500 hours
Resistance to fluids
According to MIL-DTL-38999 Standard
Gasoline: JP5 (OTAN F44) Mineral hydraulic fluid: MIL-H-5606 (OTAN H515)
Synthetic hydraulic fluid: Skydrol 500 B4
Compatible with de-icing fluids containing potassium acetate
Non QPL listed.
|
|
Leading connector manufacturers such as Glenair, Hi Rel, Deutsch and ITT Cannon offer thier own series of 38999 connectors, such as Glenair Mighty Mouse, Hi Rel HDM Micro Circular, The Cat from Deutsch
Connectors and the ITT Cannon Nemesis. As one of the most reliable connector manufacturers, connector distributors and value added connector suppliers in the United States, we help customers
worldwide with a very large diversity of interconnects and accessories. Contact us today for more info and to buy 38999 connectors, tools and accessories, such as:
|
