M85049/128 EMI/RFI Shield Connector Termination Bands
Standard and Custom Termination Bands and Mini Bands for EMI/RFI Shielding
The M85049/128 EMI/RFI Shield Termination Bands are commonly used to attach a braid or a shield to a backshell. They come in two shapes: Coiled or Flat. To provide our customers with a cost
effective solution, we now manufacture Termination Bands and we are qualified to the M85049/128 1, 2, 3 and 4 specifications.
As a component and connector manufacturer and supplier we provide value added services to our customers in military, aerospace and industrial fields.
Shown below is a summary of our various bands and their respective tools from Daniels, Sunbank, Band-It and Glenair. Please contact us for more info and to buy standard and custom
termination bands and mini bands for EMI/RFI shielding.
|
SCP P/N
|
SHAPE
|
SIZE
|
Military Reference
|
SUNBANK
TOOLS
|
GLENAIR TOOLS
|
BAND-IT TOOLS
|
DANIELS TOOLS
|

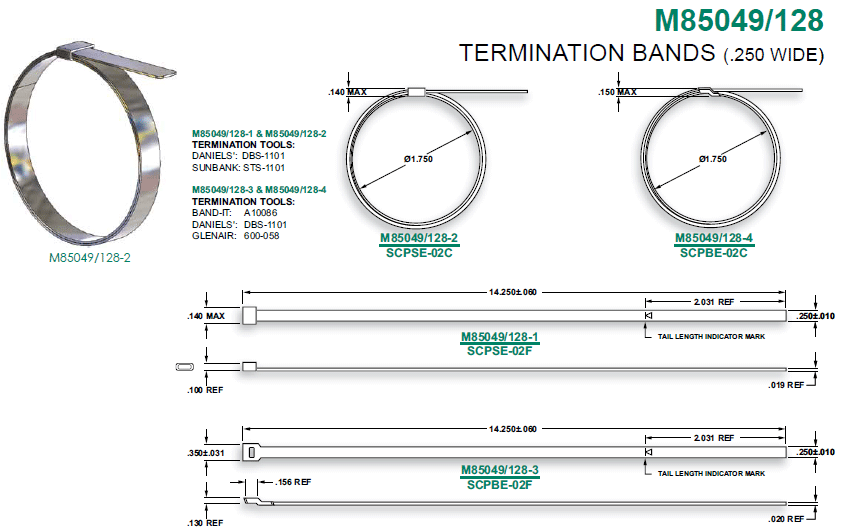

M85049/128 Termination Bands - .25 WIDE
|
|
SCPSE-02C
|
Coiled
|
.240 x 14.25
|
M85049/128-2
|
STS-1101
|
-
|
-
|
DBS-1101
|
|
SCPBE-02C
|
Coiled
|
.240 x 14.25
|
M85049/128-4
|
-
|
600-058
|
A10086
|
DBS-1101
|
|
SCPSE-02F
|
Flat
|
.240 x 14.25
|
M85049/128-1
|
STS-1101
|
-
|
-
|
DBS-1101
|
|
SCPBE-02F
|
Flat
|
.240 x 14.25
|
M85049/128-3
|
-
|
600-058
|
A10086
|
DBS-1101
|

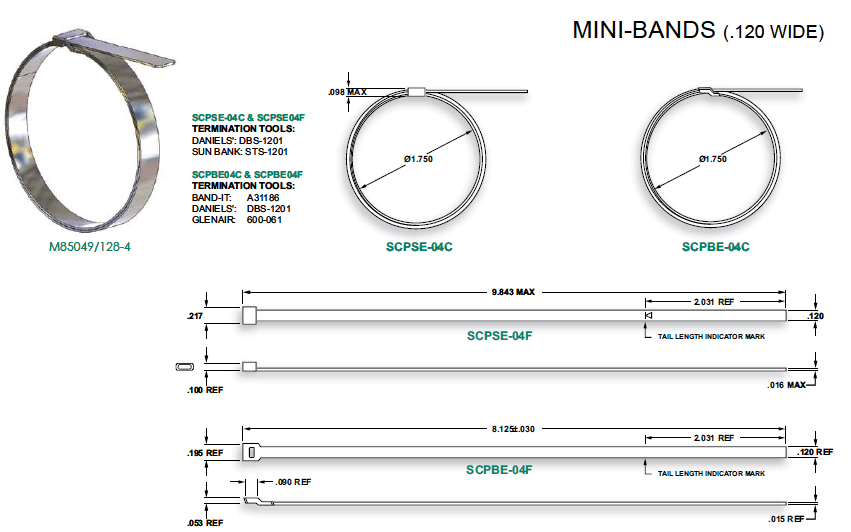

Termination Mini Bands - .120 WIDE
|
|
SCPSE-04C
|
Coiled
|
.120 x 14.25
|
-
|
STS-1201
|
-
|
-
|
DBS-1201
|
|
SCPBE-04C
|
Coiled
|
.120 x 8.125
|
-
|
-
|
600-061
|
A31186
|
DBS-1201
|
|
SCPSE-04F
|
Flat
|
.120 x 9.843 max
|
-
|
STS-1201
|
|
|
DBS-1201
|
|
SCPBE-04F
|
Flat
|
.120 x 8.125
|
-
|
-
|
600-061
|
A31186
|
DBS-1201
|
|
Band-It and Glenair bands work in the DBS or STS Tools, but two operations are required (terminate and fold-over) rather than the one operation (terminate/trim). DBS or STS 1101, and 1201 tools include both the termination tool and the secondary roll-over tool.
|
from 2008 price list
|
Part Number
|
Shape
|
Size
|
|
SCPBE-02C
|
Coiled
|
.240 x 14.25
|
|
SCPSE-02F
|
Flat
|
.240 x 14.25
|
|
SCPBE-04C*
|
Coiled
|
.120 x 8.125
|
|
SCPBE-04F*
|
Flat
|
.120 x 8.125
|
|
SCPSE-02C
|
Coiled
|
.240 x 14.25
|
|
SCPSE-02F
|
Flat
|
.240 x 14.25
|
|
SCPSE-03C*
|
Coiled
|
.120 x 9.85
|
|
SCPSE-03F*
|
Flat
|
.120 x 9.85
|
|
SCPSE-04C*
|
Coiled
|
.120 x 14.25
|
|
SCPSE-04F*
|
Flat
|
.120 x 14.25
|
|
